PolarStar Fusion Engine for V2 gearbox series AEG

Have you ever dreamed of Polarizing your MP5, G3 or SCAR? With the introduction of the GEN3, now you can! At first glance the GEN3 FEV2 looks very much like the GEN2 and, for the most part, the two are quite similar. However, unlike its predecessor, the FEV2 GEN3 is no longer just for the V2 gearbox series rifle. We applied the same concept used with our Version 3 Fusion Engine™ so that it is now able to interface with the selector plate and related components of your existing AEG’s gearbox. This makes it possible to adapt the engine for use in multiple rifle models which share the Version 2 gearbox without any major modification.

The FEV2 GEN3 will come complete with a V2 gearbox series trigger and steel selector plate so that it can be installed into any V2 gearbox series AEG which is Tokyo Marui compatible. However, by installing a different nozzle or rifle specific conversion kit, you will be able to expand the number of rifles it will be compatible with.

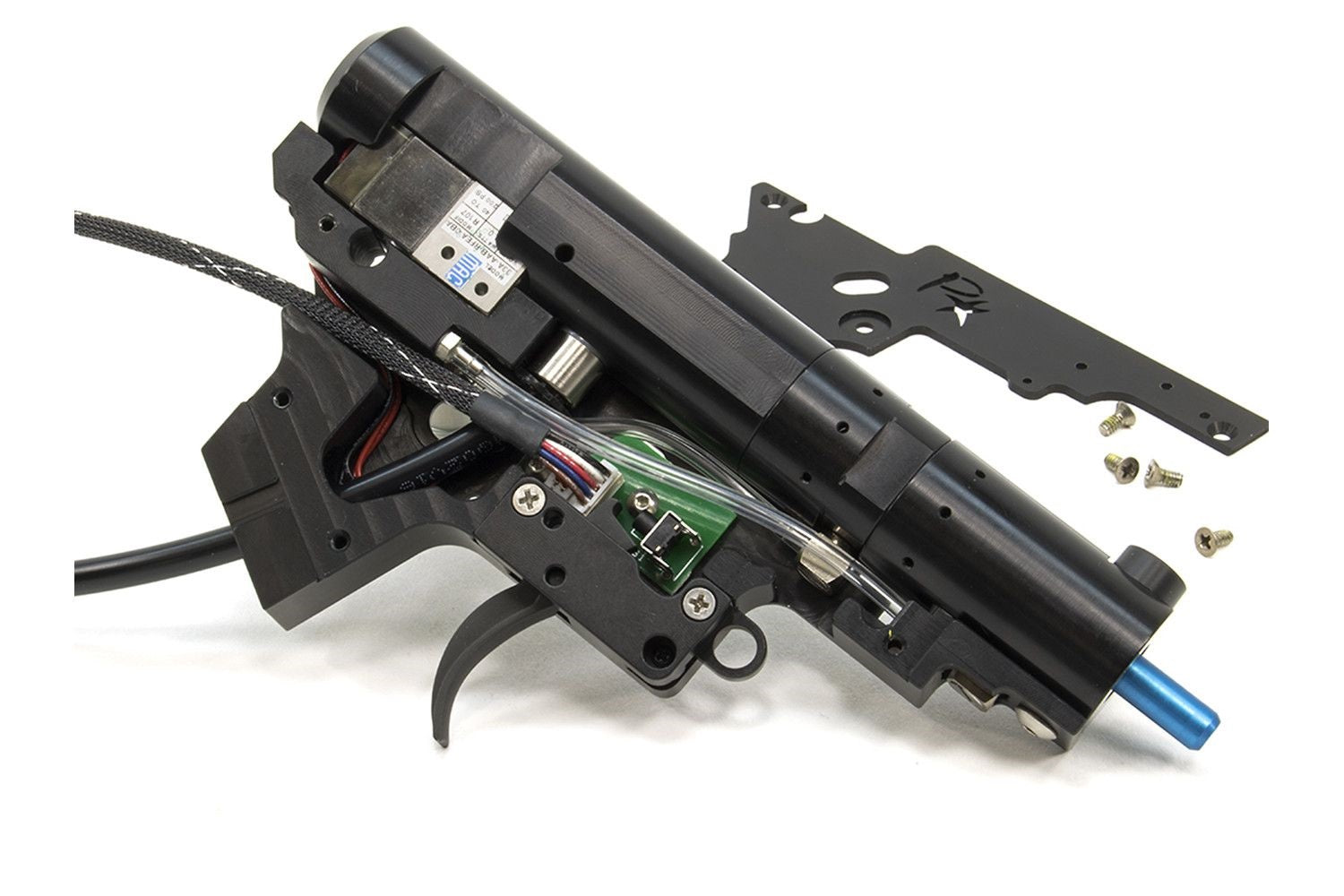

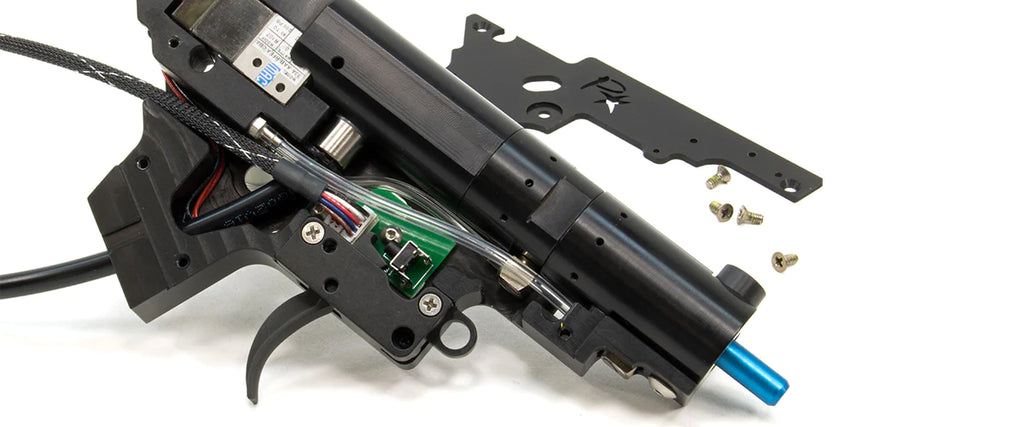

The internal operation of the GEN3 FEV2 and the GEN2 FEV2 cylinder assembly are exactly the same and share many of the same parts, so it offers the same stellar downrange performance and rock solid reliability as its predecessor. This GEN3 does however feature a new side plate design to accommodate the AEG selector plate and is equipped with a new electronic switchboard. One advantage to this new design is that the switchboard offers a wider contact point with the selector plate to allow for varying tolerances in the rifles selector assembly making for improved out-of-the-box compatibility with an increased number of rifle brands.

As requested by many of our fans, the FEV2 GEN3 will come standard with our newly redesigned Milsim Manifold. This feature enables the user to install an optional 90 degree fitting inside of their engine allowing the air line to be routed to the rear of the engine and exit through the buffer tube sling plate .

As with all of our engine models, you can quickly change and adjust key functions of the engine via the on-board FCU (Fire Control Unit) which is no bigger than an AEG's MOSFET and can easily fit inside of a rifles battery compartment along with a small Li-po battery. Using the FCU's five position joystick and LCD display you will be able to easily adjust such functions as the systems cyclic rate, fire modes and nozzle timing on the fly.

With the Fusion Engine in your rifle you will also be able to adjust its muzzle velocity via the remote air rig not included . Adjusting the PSI output on your air rig will allow you to fine tune your rifles muzzle velocity so you will always be able to get it exactly where you want it. And then for larger velocity changes we offer a series of air nozzles with varying bore sizes to shift the velocity adjustment range up or down to best meet your requirements.

The best part is that our system is extremely user friendly. Even if you have only the basic understanding of an airsoft rifle, you will find that operating and manipulating this system is very simple and does not require a degree in airsoft engineering to figure out.

Key Features
Designed, manufactured and built in the U.S.A..
Assembled from CNC machined aluminum components.
New GEN3 design now interfaces with AEG triggers and selector plates for cross compatibility with many different models.
Capable of functioning in damp and sub-freezing climates without affecting performance or reliability.
User selectable Semi/Full Auto, Semi Auto Only and Variable Burst modes.
Open Bolt and Closed Bolt firing modes.
Independently adjustable velocity and cyclic rate.
Auto Switch mode allows for proper selector configuration for specific models.
Interchangeable air nozzles to shift the velocity adjustment range up or down.
Adjustable nozzle dwell and return to battery times to optimize feeding from any magazine.
Easy to use Fire Control Unit (FCU) with LCD display and five position joystick.
Uniform shot-to-shot air volume discharge allows for unmatched velocity consistency.
Instantaneous trigger response. Faster than an AEG with a Li-po!
Interfaces with stock AEG barrel/hop-chamber allowing for aftermarket barrel upgrades and the use of traditional AEG magazines.

Required for operation: Complete TM Spec AEG rifle , Air Rig, HPA Tank, Battery

SPECS

Full Auto, Semi Auto, Variable Burst
FE Profile: Version 2
Included FE Nozzle Type: V2 gearbox Series, Blue (FE-NZ-BLU-M4)
Included Selector Plate: V2 gearbox Series
Cyclic Rate: 500 RPM to 1,800 RPM
Fire Modes: Semi / 2 to 9 Shot Burst, Semi / Full Auto, Semi Only
Power Source: HPA (High Pressure Air via remote air rig)
FCU Battery: 7.4v Lipo w/ JST Connector (BAT-LIPO-74-250)
FCU Voltage Input Range: 7-10VDC
Electronics: REV2
PSI Operating Range: 80 psi. to 120 psi.
Build Material: Aluminum
Weight: .75 lbs
